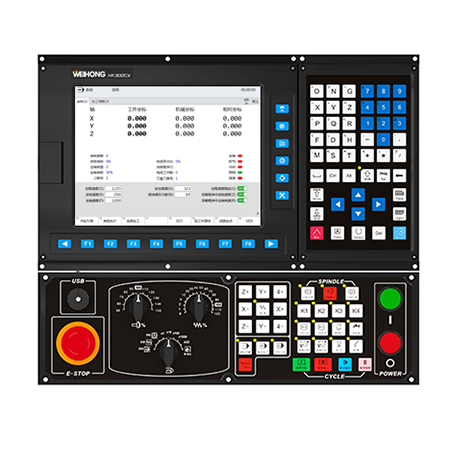

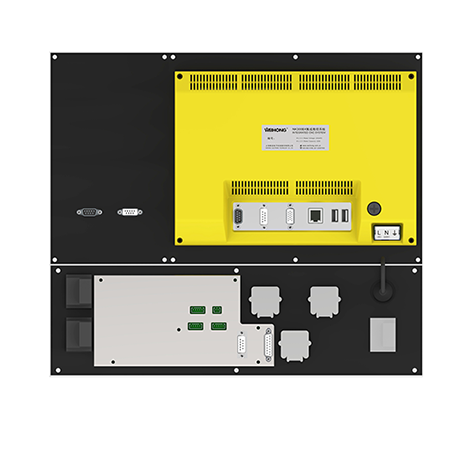

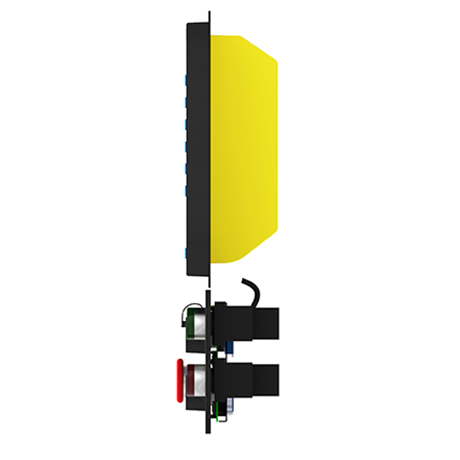

NK300CX






產品描述圖1
產品描述圖2
產品描述圖3
產品描述圖3
產品描述圖3

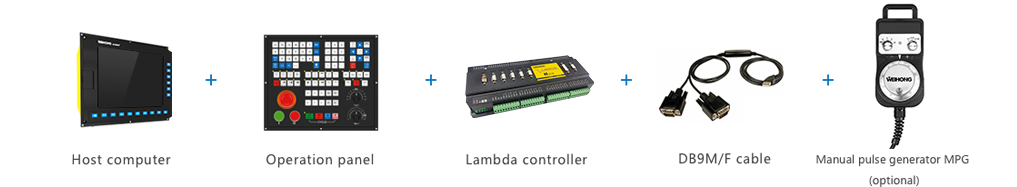

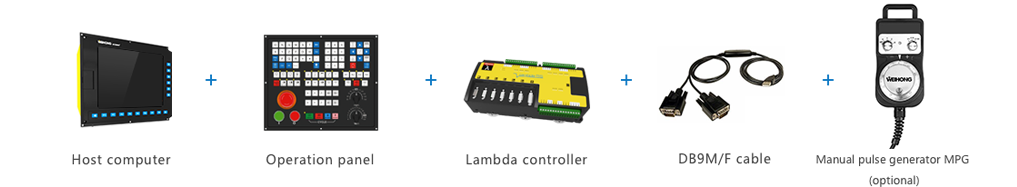

  • Product Configuration

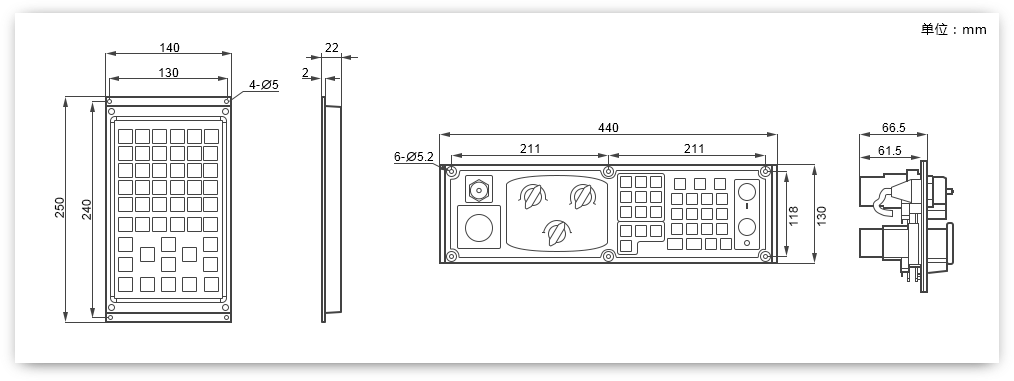

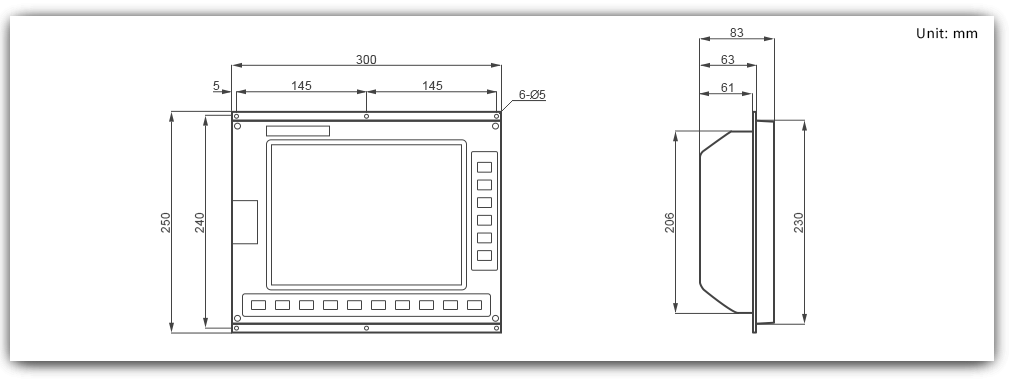

Mounting Dimension

Specification parameters

CNC Specifications

Number of Axes Supported
3-5 axes

Hardware Specifications

CPU
Dual cores

CPU Clock Speed
2.17GHz

RAM
2GB

Storage
60GB

Monitor Dimension
10.4

I/O
800×600(SVGA)

I/O
Standard: 28/8; Extended terminal board: 8/8(non-cascade connection),10/10 (cascade connection)

Performance Indicator
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.

Spindle

Analog Voltage Output
0-10V

Tool Management

Tool Magazine
Linear tool magazine,Disk-type tool magazine

Tool Measurement Mode
Auto measurement,Manual measurement

Tool Measurement Type
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change

Interpolation Programming

Circular Interpolation
Three axes linkage
Three axes linkage

Compensation
Screw error compensation, Backlash compensation, AQE compensation, Tool compensation

Toolpath Program

Supported File Format
*.g;*.nc;*.ug;*.demo;*.iso;*.eng;*.cut;*.dxf;*.plt;*.txt

Communication

Internet(Ethernet)
LAN communication, Front USB interface, Two-way transmission between the system and PC

Operations

WCS Setting
Supporting WCS G54-G59 and 120 extended WCSs

Processing Technology
Array function, Mirror&rotate, Multi-layer machining, Cycle machining

Software Language

Chinese,English

High-speed High-precision Optimization

Interpolation Algorithms
S-type,LEP and Acceleration T-type algorithms

Reliability & Safety

CNC Software Alarm
Alarms of program error, operation error, over-travel error, PLC error and IO communication error

Widely applied……

Successful Cases



High-end mold milling machine
4 axes router machine
Drilling and tapping center
Drilling and tapping center
Woodworking machining center
